COATERCreative & Innovative Systems

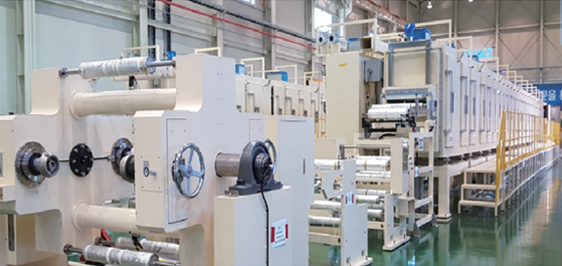

Coater Main Spec. _Standard

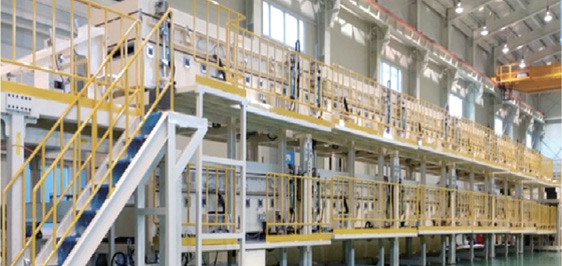

Slot Die Coater 2F/L
  • Coating typeSlot Die
  • Coating widthMax. 1320mm
  • Coating speedMax. 5-70m/min 2FL 24Zone
  • Drying Heat sourceSteam . Hot oil . Electric
  • Density Accuracy±1.5%
  • OptionDensity Gauge & Vision
  • Dimension(M)L80 X W8 X H7
  • Delivery12 months
Slot Die & Comma reverse Coater 1F/L
  • Coating typeSlot Die
  • Coating widthMax. 1320mm
  • Coating speedMax. 50m/min 1FL 8Zone
  • Drying Heat sourceSteam . Hot oil . Electric
  • Density Accuracy±1.5%
  • OptionDensity Gauge & Vision
  • Dimension(M)L45 X W6 X H4

Coating Thickness Quality

[ Coating Density & Thickness Quality : ±1.5% & Thickness ±1.5um ]

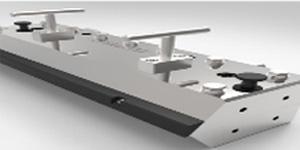

  • Slot Die Spec.(Max. Width 1350mm)

    • Flatness : 3um
    • Straight : 3um
    • Surface roughness : Rmax 0.1S

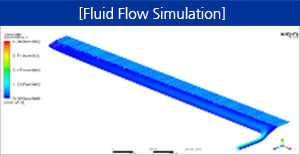

  • Fluid Flow Simulation

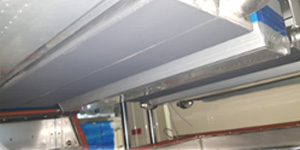

  • Slot Die Coating Type
  • Cathode Coating (Max. Width 1000mm)

    • Flatness : 3um
    • Straight : 3um
    • Surface roughness : Rmax 0.1S
  • Anode Coating (Max. Width 1350mm)

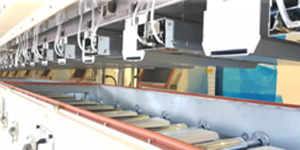

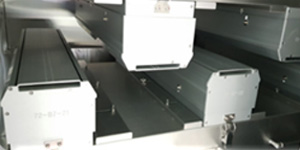

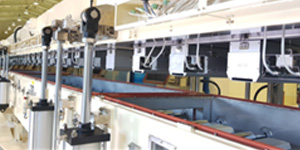

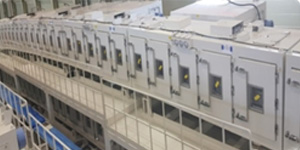

Drying Oven Core Technology

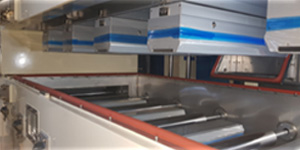

  • Cathode Dry Oven

  • Anode Dry Oven

  • Air Floating type

  • Roll Supporting type

  • Trunk top open type

  • Door side open type

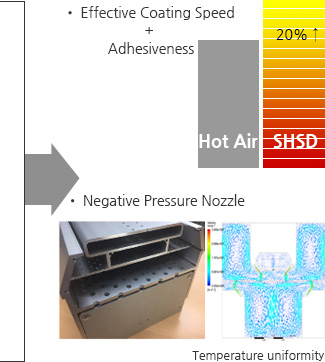

Effective Coating Speed + Adhesiveness  Negative Pressure Nozzle

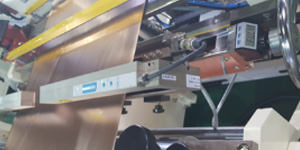

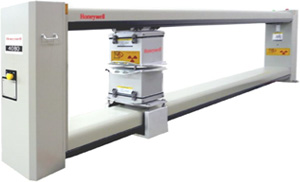

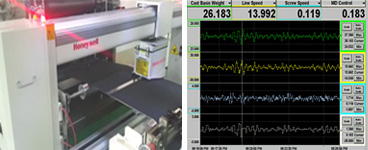

Coating Density Measurement

  • Coating Loading Density Measurement

    • Measuring Type : Beta Ray
    • Measuring Range : 0 to 1400 g/m2
    • Reproducibility : ±0.1 g/m2 or +/- 0.1 %
    • Scanning Speed : 80m/min
  • Data save

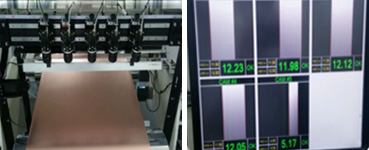

  • Electrode Coating Width Inspection Technology

    • Inspection Coating speed : 80m/min
    • Inspection resolution(Coater Horizontal resolution) : 50um
    • Minimum detection size : Min 0.2mm

Core Technology

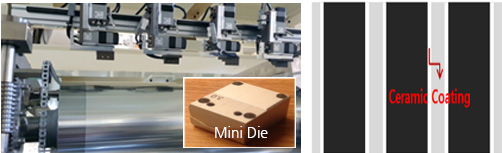

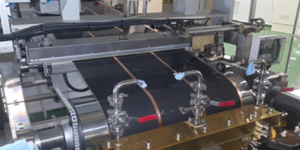

  • Ceramic Coating

    • Coating Width : 3~6mm
    • Coating Thickness : Max 20um
    • Coating Thickness Quality : ± 1um
    • Coating Position Control : Auto or Manua

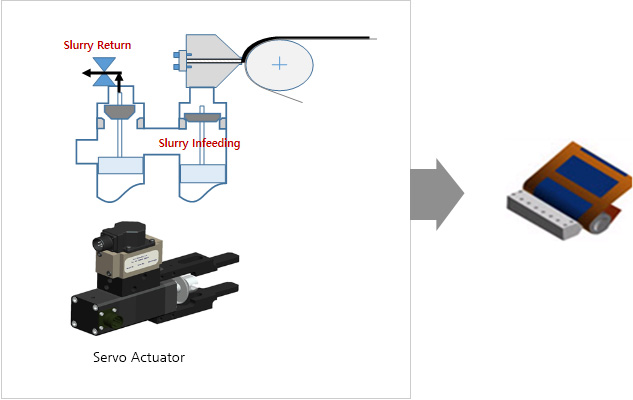

    • Slurry Individual Supply
  • Coating Pattern Gap Precision Control (Cylindrical 18650 & 21700)

    • Pattern Gap Control : 12mm
    • Coating Speed_40m/min
    • Pattern on/off Driving : CIS Development Unit
    • Slurry Transfer Motor : Mono Pump

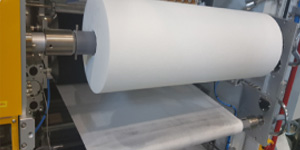

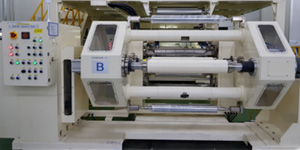

  • Half Slitting Re-winder

    • 1320mm Wide Coating → Half Slitting
    • Winder Position Control : Auto or Manual
  • Auto Turret

    • Compact design : Central structural
    • AGV Technology
    • Roll Auto Change : Max. 60m/min
    • Effective : Productivity Improve & Save Loss 20%
  • Speed & Tension Control Technology

    Item Spec. Check
    Speed deviation ±1% ±0.14%
    Tension Range 50N~300N[All Width]
    Drive Type Servo Motor

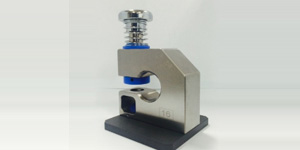

  • Manual Punching Tool

    • Punching Diameter : Dia.8mm ~ 28mm
    • 용도 : Coin Cell / Measuring coating loading
    • Dimension : 85mm(L) x 80mm(W) x 150mm(H)
    • Weight : 1.2kg

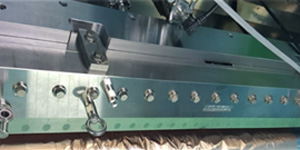

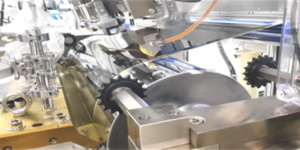

  • Slot Die Nip Control

    • Air Cylinder Type(Auto)
    • Nozzle Gap precision : 1um control
    • Bolting Type(Manual)

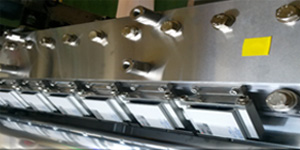

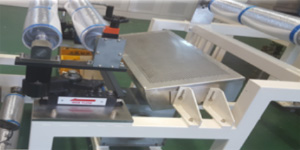

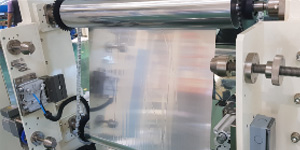

  • Auto Foil Cleaning Device

    • Roll Felt Type(Oil Auto Spray)

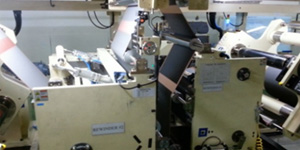

  • Dual EPC Device

    • Edge Alignment : ±0.5mm
  • CPC & Electrode Cooling Device
